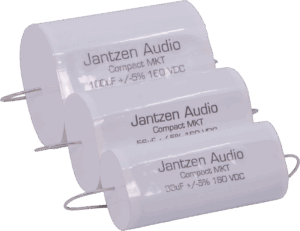

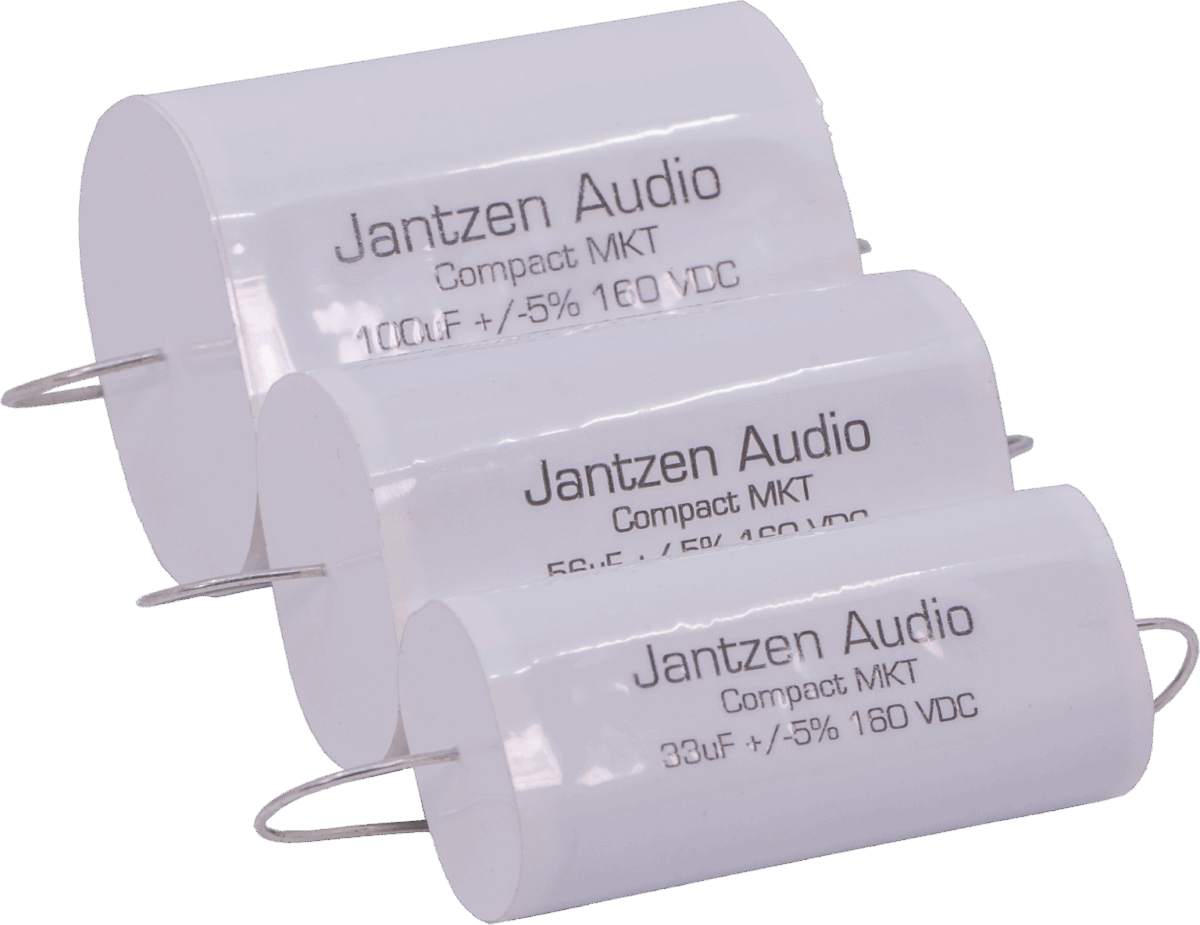

Compact MTK 1,50 µF +/- 5% 160 VDC 8x12x19 mm

Beskrivelse

TECHNICAL DATA
• Capacitor foil: Metalized polyester foil
• Dielectric insulation: Polyester foil
• Terminal leads: Tinned 4N copper wire
• Voltage rating: 160 VDC / 100 VAC
• Capacity tolerance: +/- 5%
• Dielectric constant: Non-polar dielectric
• Dissipation factor: Extremely low
• Dielectric absorption factor: <0.5% @20°C
• Dielectric thickness: PB=5µm
• Equivalent series resistance (ESR): Extremely low
• Self-inductance: <15 nH
• Insulation resistance: >5000 MΩx µF 10000 MΩ min
• Temperature coefficient: -200°Cx10¯6/°C
• Temperature Range: -55°Cto + 125°C
• Metal layer thickness: PB=0.3 µm
• Metal layer conductivity: PB = 1.2 Ω/ cm²
