SEAS Exotic W8 – The Exotic W8 is an 8 inch woofer-midrange driver

kr10,860.00

Ikke på lager, tilgjengelig som restordre

Produktnr: X2-08 Kategori:

Beskrivelse

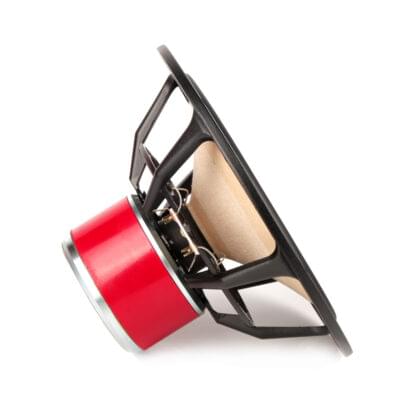

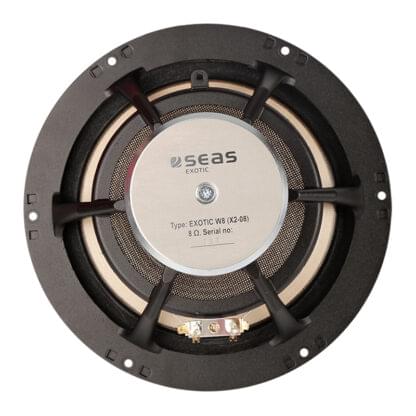

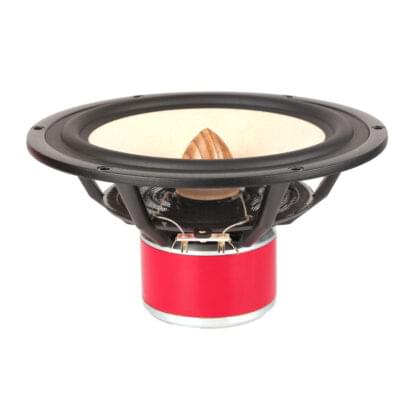

The Exotic W8 is an 8 inch woofer-midrange driver designed for smooth, wide frequency response, high sensitivity and low distortion.

The special paper cone is embedded with papyrus fibres to optimize stiffness and damping.

A special foam rubber surround reduces mass by 40% compared to conventional rubber surrounds, resulting in higher sensitivity and excellent damping properties. Unlike most plastic foam materials, this material is stable and will offer decades of trouble-free operation.

A new and proprietary spider design dramatically improves the performance of this critical suspension part. By combining an extremely open weave with a new resin formulation, all noises normally generated by the friction of the threads rubbing together are virtually eliminated. Additionally, the open weave is highly acoustically transparent, minimizing the reflections and resonances associated with conventional spider designs.

A high temperature copper voice coil is wound on a rigid, non-conductive glass fibre former.
High quality H2 lead-out wires eliminate noise due to roping and resonances.

The magnet system uses an Alnico V ring magnet for high sensitivity and excellent stability.

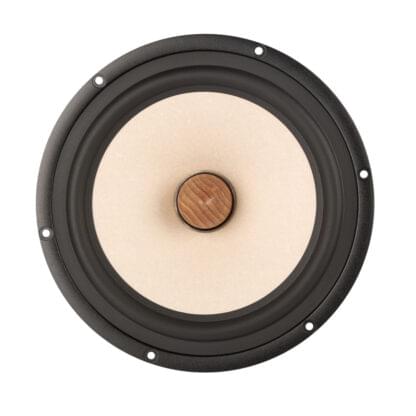

Massive copper rings above and below the magnet gap lower distortion due to eddy currents and flux modulation. A hand-turned phase plug made from ash offers optimal radiation conditions for the critical mid frequency band.

A stiff and stable injection moulded zinc basket keeps the critical components in perfect alignment. Generous windows both above and below the spider reduce sound reflection, air flow noise and cavity resonances to a minimum.
