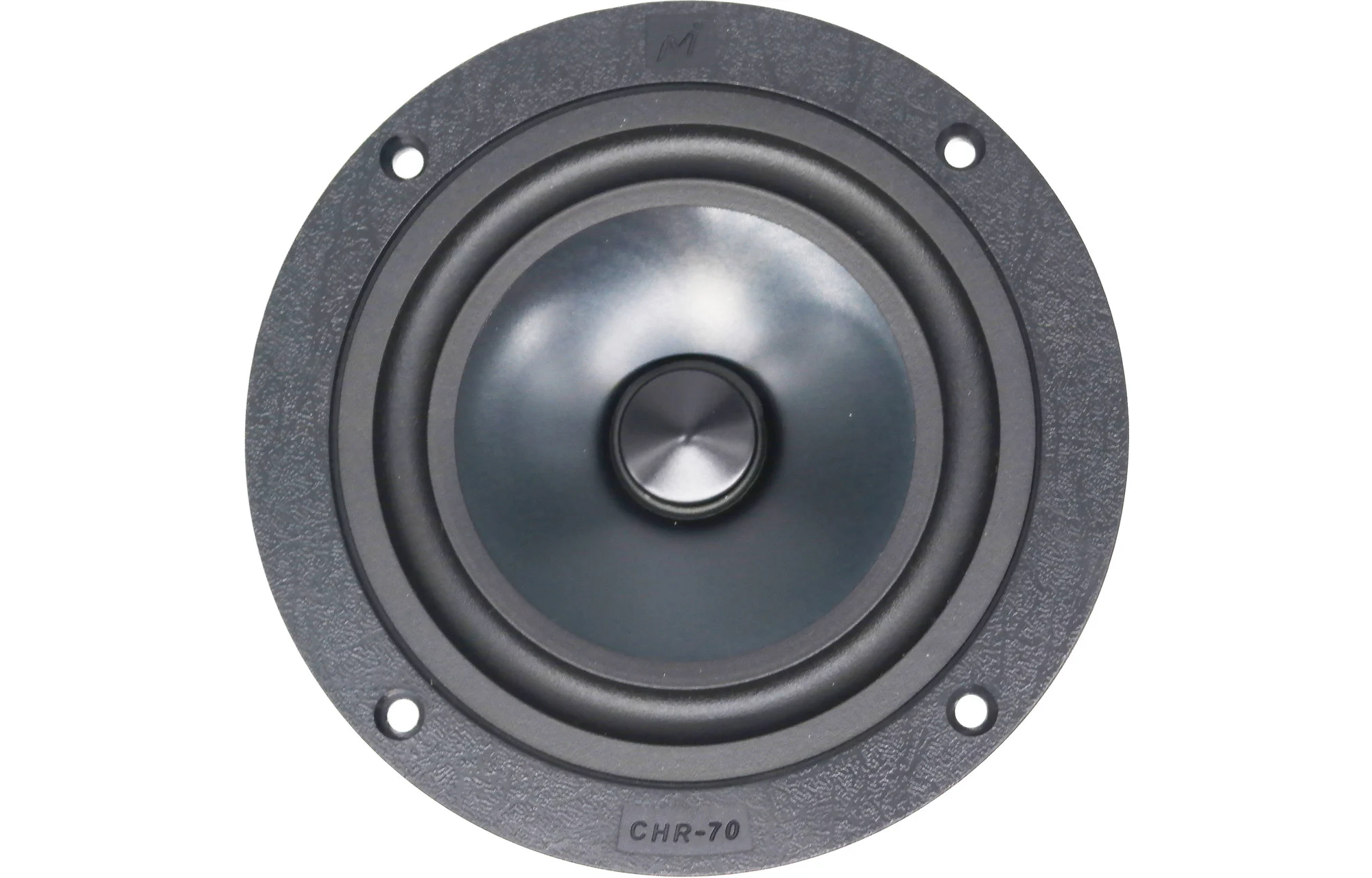

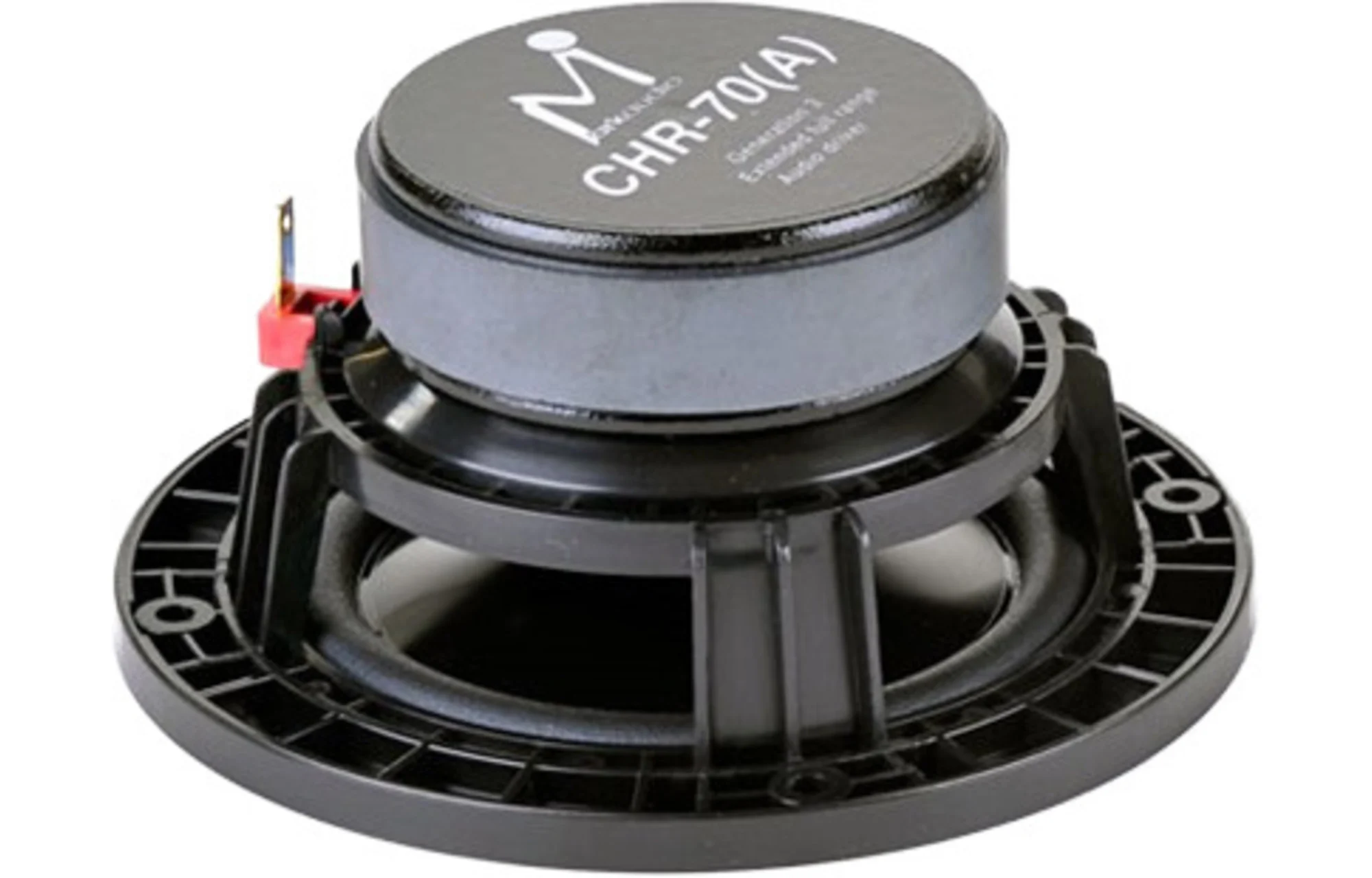

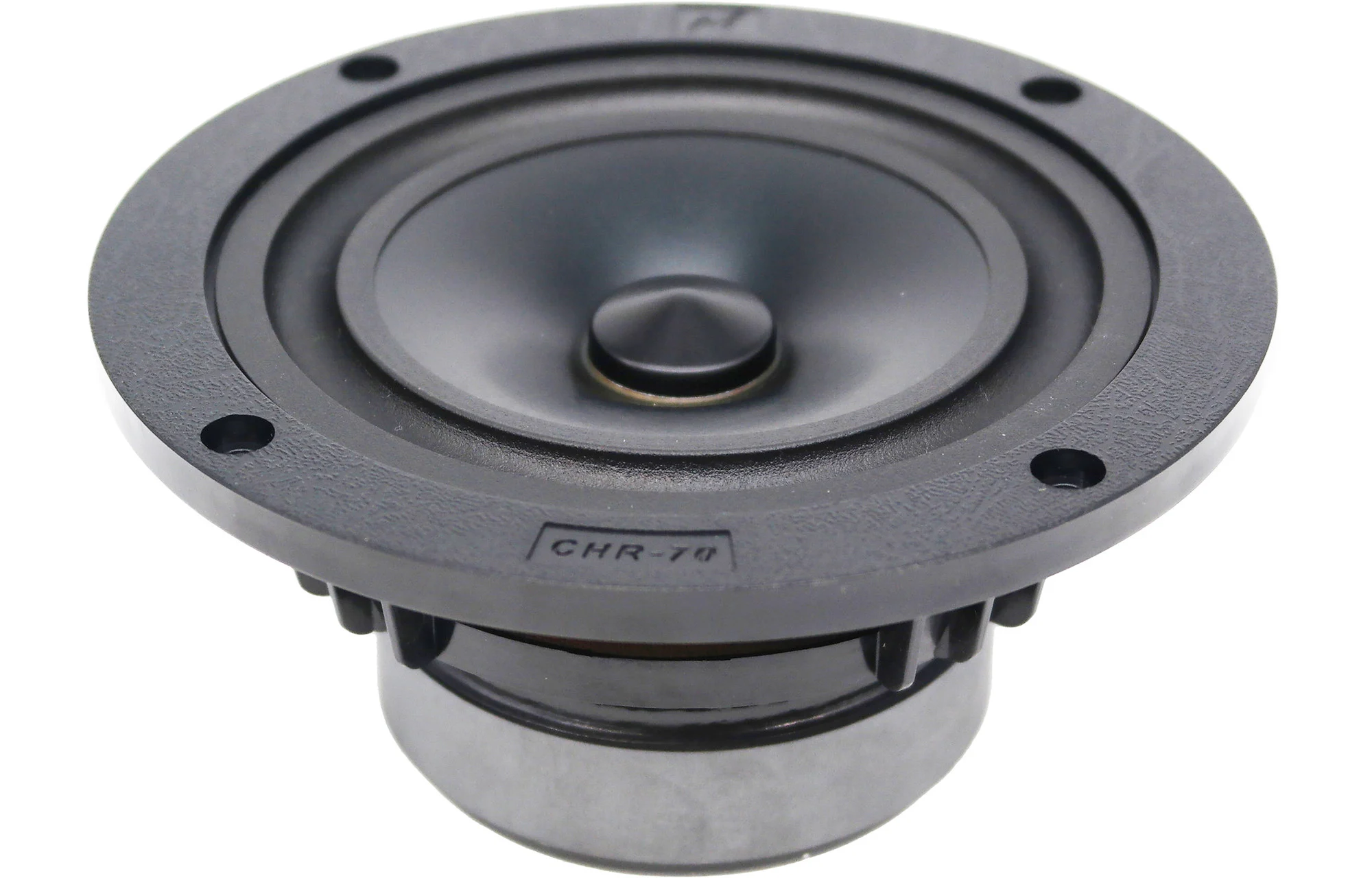

Mark Audio CHR-70 Black (Pris for par)

Name: Mark Audio CHR-70 Black (Pris for par)
SKU: Alpair_CHR-70_Black
Price: 1180.00 NOK
Availability: InStock

kr1180.00

The CHR-70A (Gen. 3) is now up-dated 4 times since the first model was launched 4 years ago. Its usable frequency range is class leading. Depending on enclosure design, its capable of operation from 40Hz to 25-kHz.

1 på lager (kan også restbestilles)

Produktnummer: Alpair_CHR-70_Black Kategori: Mark Audio

Beskrivelse
Produktark

Beskrivelse

2 developments further improve the design. An excursion limiter (arrestor) has now been fitted inside the motor sub-assembly, significantly reducing the risk of over-driving damage. The CHR is now capable of being driven at higher loads making it suitable for more audio applications. Colour coded custom locking connectors are now included in this design.

The driver has medium efficiency of 85.5dB at 8 Ohms making it easy to use on nearly all small to medium power amplifiers.

Alpair CHR-70A – Parameters
Revc= 7.2 Ohm	Fo= 65.40 Hz	Sd= 5.02 K mm/2	Vas= 5.17 Ltrs
Cms= 1.44 uM/N	Mmd= 3.90 g	Mms= 4.10 g	BL= 4.20 T*M
Qms= 2.66	Qes= 0.69	Qts= 0.55	Levc= 32.44 uH
No= 0.20%	Spl= 85.4 dB	Pwr= 20w Nom.	Xmax= 4.3-mm 1 way
Coil= Dia 20-mm	Main tolerance= +/- 2.5 hz on mean Fo
